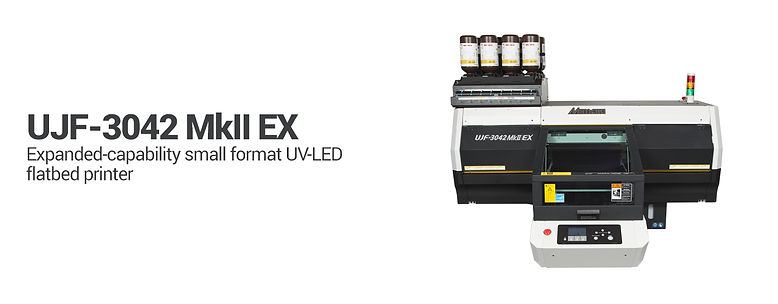

Mimaki UJF-3042 MkII EX

Impresora de formato pequeño UV LED de capacidad expandida

La nueva Mimaki UJF-3042 MkII EX ofrece capacidad de tinta adicional. incluye herramientas que le permiten al usuario - incluyendo proveedores de impresión comercial, impresores de productos promocionales, educadores y fabricantes - crear productos especiales, premios, y otros productos personalizados, con producción justo a tiempo.

Descripción General
  • Eight ink channels

  • Add Light Cyan and Light Magenta

  • Or configure with Clear, Primer and White ink at the same time

  • Print on objects 11.8” W x 16.5”D x 6” H

  • Speed improvements of up to 20 percent over previous generation

  • Gigabit Ethernet standard

  • High quality print resolution of up to 1200 dpi

  • Enclosed print area reduces dust contamination and UV exposure

  • Mechanical structure reduces vibration for increased ink drop accuracy

  • Mimaki Advanced Pass System 4 (MAPS4) technology reduces visible banding

  • Mimaki Circulation Technology (MCT) for White ink prevents settling

  • Mimaki Clear Control (MCC) for smoother, cleaner clear effects

  • Improved gap check laser sensor for more accurate media detection

  • Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) ensure continued productivity

  • Select from a variety of inks including white, clear, and jettable primer

  • Compact model fits easily into a design studio or office environment

  • Print on cylindrical objects with the Mimaki Kebab MkII option


Professional UV printing on a proven platform

The UJF-3042 MkII EX printer combine higher accuracy dot placement with speed improvements of up to 20 percent over the previous generation. A fully enclosed print area reduces airborne contaminants, reducing re-prints and ensuring production stays on track. These models also enable placement in more demanding environments such as a production floor. Current UJF EX users can expand their printer line-up with a UJF-3042 MkII EX printer without the need to rework jigs, protecting their investment in custom jigs due to a common registration hole layout.

Workflow enhancements streamline production.

The UJF-3042 MkII EX printer is fully networkable with industry standard Gigabit Ethernet for multiple printer connections over greater distances ensuring the highest productivity. Production on a UJF-3042 MkII EX printer is made more efficient with an automated hot folder-based workflow. Users can take advantage of features in RasterLink6 RIP software such as the ability to build a template and auto-populate the data using Variable Data with the Adobe InDesign Data Merge function or third party VDP plug-ins, to create a table’s-worth of personalized items.

Integrated tools for high tolerance repeatable output.

Ball screw table movement paired with precise ink drop placement results in precise image quality. The UJF print table uses threaded registration screws for repeatable media or jig placement. Combined, these features ensure consistent accuracy for maximum production and minimal waste. A vacuum table ensures better fixation of challenging materials.

Mimaki Advanced Pass System 4 (MAPS4)

MAPS4 utilizes an advanced algorithm pattern to reduce banding, delivering output that looks spectacular even at higher speeds. Combined with Variable Dot Technology, the resulting prints is smooth even in the mid-tones, solids and gradients.

Waveform Control (WFC)

WFC utilizes finely tuned frequencies for each ink’s specific gravity and viscosity to precisely shape and place individual drops, producing images that are optimized even at lower resolutions.

Mimaki Circulation Technology (MCT)

MCT continuously circulates White ink and reduces the need for manual maintenance and waste.

Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS)

Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS)

UV-LED Technology

Mimaki’s UV-LED system uses less energy than other UV types, has a longer life and can print into media that could be damaged by higher-heat systems.


Model UJF-3042 MkII EX

Print system On-demand piezo, 4 printheads in a staggered configuration

Max print area 11.8” W x 16.5” L (300 x 420 mm)

Max media thickness 6.0” (153 mm)

Max media weight 11 lbs. (5 kg)

Print resolutions 600, 900, 1200 dpi

Max print speed up to 27.8 SqFt (2.58 SqM) / Hr

Ink type

LH-100 UV: For high scratch and chemical resistance -- C, M, Y, K, Lc, Lm, W, Clear
LUS-120 UV: For flexibility and scratch resistance -- C, M, Y, K, Lc, Lm, W, Clear
LUS-150 UV: For balanced adhesion and flexibility -- C, M, Y, K, W
PR-200 UV Primer

Ink capacity 1 liter bottles 250 ml bottles (available for LH-100 and LUS-120 inks only)

Operational environment Temp: 68˚ - 86˚ F (20˚ - 30˚ C) 35-65% RH (non-condensing)

Connectivity Gigabit Ethernet or USB 2.0

Power supply AC100V-240V, 50/60 Hz

Dimensions (W x D x H) 53.3 x 50.8 x 33.7” (1353 x 1290 x 856 mm)

Weight 320 lbs. (145 kg), printer only
